charmm

This keyword specifies the implementation details of the CHARMM force field.

Options

Provide the filenames of the CHARMM force field parameter files (paths may be included). There is no default file, so at least one filename must be specified.
Multiple files can be listed if needed:

charmm
  parameters par_all35_ethers.prm /home/zhang/userdef/par_all35_proteins.prm
end

Note: If the same term—for example, a bond like CT-CT—appears in multiple parameter files, the definition in the later file will overwrite those in the earlier ones.

charmm
  use_PBC
  Lbox 86 86 86
end

Theoretical Background

CHARMM Force Field

To perform a CHARMM force field calculation, in addition to system coordinates, one must provide the system topology (via the topology keyword) and force field parameter files (via the parameters keyword). The CHARMM force field consists of bonded and nonbonded interactions.
• Bonded interactions include:
• Bond stretching
• Angle bending
• Dihedral angle rotation
• Improper torsion
• Nonbonded interactions include:
• Lennard-Jones interactions
• Electrostatic interactions
All interaction terms are defined within the topology and parameter files.

For nonbonded interactions in non-periodic systems, all pairwise interactions can be computed by setting rswitch larger than rcutoff. However, computing all pairwise interactions can be computationally expensive. In such cases—both for non-periodic and periodic systems—a cutoff scheme can be used to truncate long-range interactions.
In the cutoff scheme (electrostatic cutoff), interactions are truncated at a specified distance rcutoff. A switching function is then applied to smoothly reduce the interaction strength starting from a distance rswitch. Note that the switching functions differ between Lennard-Jones and electrostatic interactions.
Their mathematical expressions are shown below:

$$\begin{aligned} S_{\text{LJ}}(r) = \begin{cases} 1 & \text{if } r \le r_\text{s} \\ \frac{\left(r_\text{c}^{2}-r^{2}\right)^2\left(r_\text{c}^{2}-r^{2}-3\left(r_\text{s}^{2}-r^{2}\right)\right)}{\left(r_\text{c}^{2}-r_\text{s}^{2}\right)^3} & \text{if } r_\text{s} \le r \le r_\text{c} \\ 0 & \text{if } r \ge r_\text{c} \\ \end{cases} \end{aligned}$$

$$\begin{aligned} S_{\text{el}}(r) = \begin{cases} \left(1-\frac{r^2}{r_\text{c}^{2}}\right)^2 & \text{if } r \le r_\text{c}\\ 0 & \text{if } r \le r_\text{c} \\ \end{cases} \end{aligned}$$

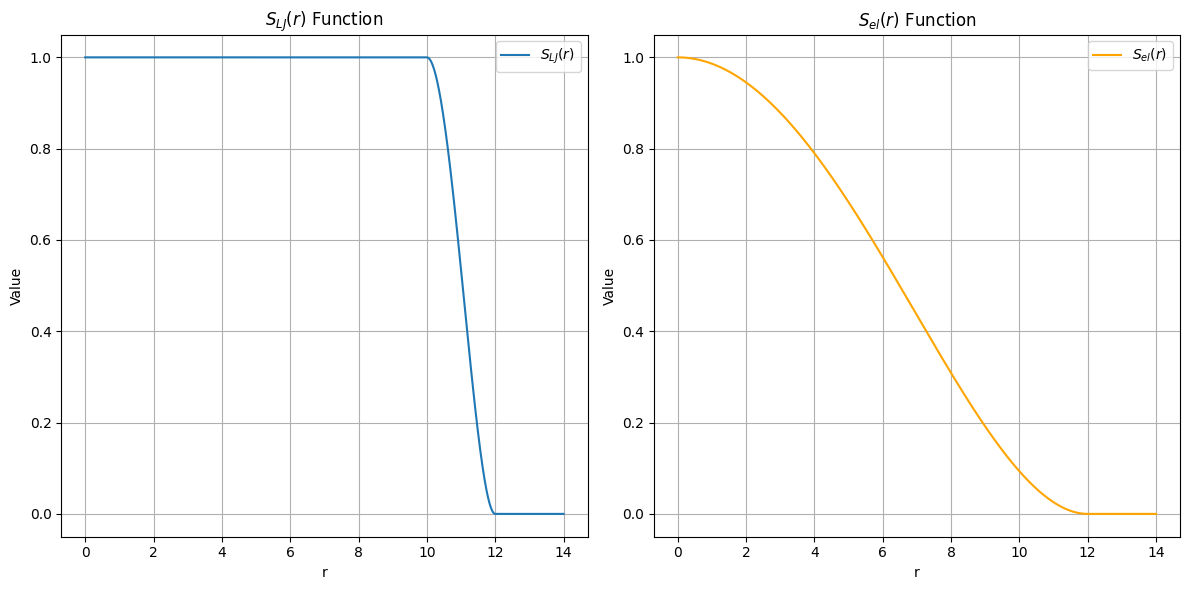

Plots of these functions are shown below.

For periodic systems, the Particle Mesh Ewald (PME) method (specified as electrostatic pme) can be used to calculate long-range electrostatic interactions. Additionally, rcutoff should be smaller than half the size of the periodic box to avoid self-interactions.

PSF File Format

A Protein Structure File (PSF) is a file format used to describe the topological information of biological macromolecules. PSF files primarily store data related to atoms, bonds, angles, dihedral angles, and improper force terms. However, they do not contain atomic coordinates.

The PSF file consists of the following sections relevant to Qbics:

1. Atoms: Lists each atom’s ID, residue information, atom type, charge, mass, etc.
2. Bonds: Defines covalent bonds between atoms. Each line contains the IDs of atom pairs.
3. Angles: Records bond angles formed by three atoms. Each line contains three atomic IDs.
4. Dihedrals: Defines dihedral (torsion) angles involving four atoms. Each line includes four atomic IDs.
5. Impropers: Represents mechanical constraints used to preserve molecular planarity (e.g., the coplanar structure of a benzene ring). Each line contains four atomic IDs.

      6 !NTITLE
REMARKS original generated structure x-plor psf file
REMARKS 2 patches were applied to the molecule.
REMARKS topology top_all27_prot_lipid.inp
REMARKS segment U { first NTER; last CTER; auto angles dihedrals }
REMARKS defaultpatch NTER U:1
REMARKS defaultpatch CTER U:76

   1231 !NATOM
      1 U 1 MET N NH3 -0.300000 14.0070 0
      2 U 1 MET HT1 HC 0.330000 1.0080 0
      3 U 1 MET HT2 HC 0.330000 1.0080 0
      4 U 1 MET HT3 HC 0.330000 1.0080 0
      5 U 1 MET CA CT1 0.210000 12.0110 0
      6 U 1 MET HA HB 0.100000 1.0080 0
      7 U 1 MET CB CT2 -0.180000 12.0110 0

Key Sections of a PSF File

1. Title Section: Contains annotation information of the PSF file, such as generation method, topology file path, and so on.
2. Atoms Section:
   • Atom ID: A unique identifier (e.g., 1, 2).
   • Segment Name: For example, U for a protein chain.
   • Residue ID: The ID of the residue to which the atom belongs (e.g., 1 for the first residue).
   • Residue Name: For example, MET for methionine.
   • Atom Name: Atom label, such as N, HT1, HT2, CA, etc.
   • Atom Type: The type used in force field calculations (e.g., NH3, HC, CT1).
   • Charge: Partial charge of the atom (e.g., -0.300000).
   • Mass: Atomic mass (e.g., 14.0070).
3. Bonds, Angles, Dihedrals, and Impropers Sections: These follow the Atoms section and contain corresponding structural information.
   • Bonds: Lists pairs of atom IDs that are covalently bonded.
   • Angles: Lists triplets of atom IDs defining bond angles.
   • Dihedrals: Lists quadruplets of atom IDs defining torsional angles.
   • Impropers: Lists quadruplets of atom IDs used to enforce planarity or chirality.

    7517 !NBOND: bonds
 1         2         1         6         1         7         2         3
 2        12         3         4         3         8         4         5
 4         9         5         6         5        10         6        11
 7        13         7        14        12        13        14        15
14        16        17        18        17        19        17        20
17        21        19        22        23        24        23        25
23        26        23        27        25        28        29        30

Here, we have bonds such as 1–2, 1–6, 1–7, 2–3, and so on. The format is similar for the other sections.

CHARMM Parameter File Format

CHARMM force field files define the rules and parameters governing interactions between atoms in a molecular system. The file contains several sections relevant to Qbics:

1. BONDS: Defines the equilibrium lengths of covalent bonds and their corresponding force constants.
2. ANGLES: Provides the equilibrium values of bond angles and their associated force constants.
3. DIHEDRALS: Specifies the potential energy function and parameters for torsional angles.
4. IMPROPERS: Specifies the potential energy function and parameters for out-of-plane (improper) torsions.
5. NONBONDED: Defines the Lennard-Jones potential for nonbonded interactions.

Other sections, such as NBFIX, are not used by Qbics.

Input Examples

Example: Molecular Dynamics Simulation of Ubiquitin in Water

Below is an example Qbics input file for simulating the protein ubiquitin in water. The system includes a total of 24,696 atoms—ubiquitin solvated in a 64 × 64 × 64 ų water box.

This system was built by randomly placing water molecules around the ubiquitin.
This usually results in a high-energy configuration, and running molecular dynamics directly on it can lead to instability.
Therefore, we first perform energy minimization to optimize the structure:

charmm
    # Here:
    # toppar_water_ions.str: the parameter file for water and ions.
    # par_all36m_prot.prm: the parameter file for proteins.
    # Both are obtained from website: https://mackerell.umaryland.edu/charmm_ff.shtml.
    parameters toppar_water_ions.str par_all36m_prot.prm
    topology   sys.psf
    scaling14  1.0
    rcutoff    12.0
    rswitch    10.0
    use_PBC         # Add this line to turn on PBC.
    Lbox 64 64 64   # Define the box size.
    electrostatic pme # Use PME for electrostatics.
    PMEk   64 64 64
end

opt
    max_step 500
end

mol
    sys.pdb
end

task
    opt charmm
end

After 500 steps of energy minimization, the system’s total energy decreased from 34,167,803.38 kcal/mol to -82,402.26 kcal/mol.

Using the optimized structure, we can now proceed with an NVT molecular dynamics (MD) simulation:

charmm
    # Here:
    # toppar_water_ions.str: the parameter file for water and ions.
    # par_all36m_prot.prm: the parameter file for proteins.
    # Both are obtained from website: https://mackerell.umaryland.edu/charmm_ff.shtml.
    parameters toppar_water_ions.str par_all36m_prot.prm
    topology   sys.psf
    scaling14  1.0
    rcutoff    12.0
    rswitch    10.0
    use_PBC         # Add this line to turn on PBC.
    Lbox 64 64 64   # Define the box size.
    electrostatic pme # Use PME for electrostatics.
    PMEk   64 64 64
end

md
    type        nvt
    dt          0.001 # 1 fs
    num_steps   1000  # 1 ps. Just for demonstration.
    output_freq 100
    temp        298
end

mol
    charmm-1a-opt.xyz # Use the optimized structure from the previous step.
end

task
    md charmm
end
